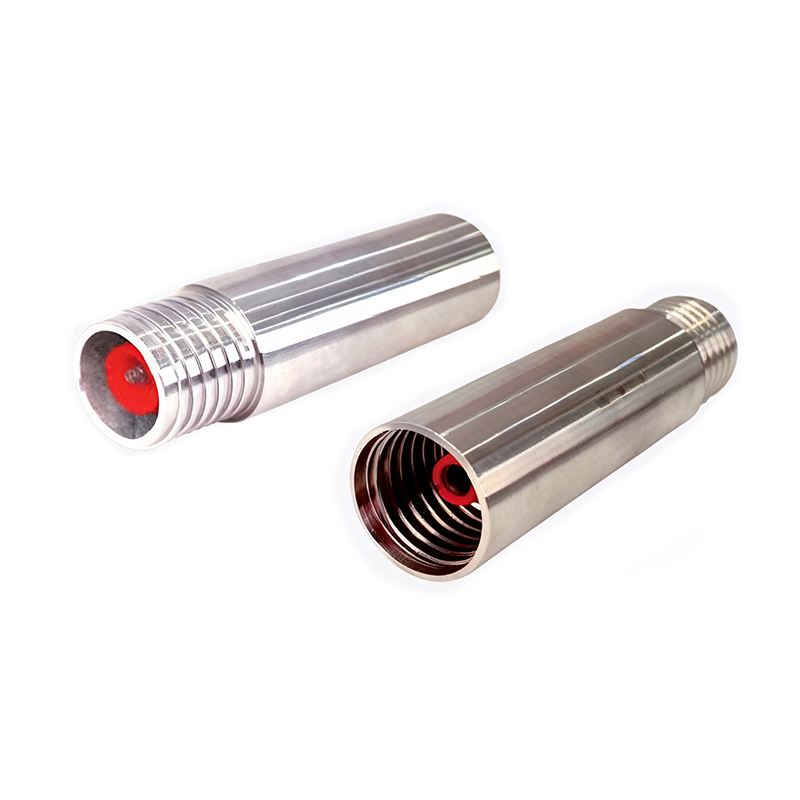

Cable-Passing Reducing Sub/Check Valve
Short Description:
Product Description The Measurement While Drilling (MWD) check valve is supporting equipment for directional drilling technology. It functions to transmit signals, convey power media for downhole motors, prevent gas outbursts, stop backflow of power media, and transfer power from drilling rigs. It is mainly used with kilometer-scale directional drilling rigs. Product Features The joint and rod body are of an integrated structure, undergoing overall quenching and tempering treatment; H...
Product Detail
FAQ
Product Tags
Product Description
The Measurement While Drilling (MWD) check valve is supporting equipment for directional drilling technology. It functions to transmit signals, convey power media for downhole motors, prevent gas outbursts, stop backflow of power media, and transfer power from drilling rigs. It is mainly used with kilometer-scale directional drilling rigs.
Product Features
- The joint and rod body are of an integrated structure, undergoing overall quenching and tempering treatment;
- High tensile strength and torsional resistance: Tensile strength ≥1035MPa, yield strength ≥965MPa;
- Good toughness: Fully meeting the level of grade 135 steel;
- Excellent sealing performance: Stable signal transmission under a pressure environment of 10MPa.
Application Scope
The MWD check valve is mainly used in conjunction with center cable drill pipes.
Technical Parameters
（Please provide the specific technical parameter data, and I will help you translate and organize it into a table format.
| Specification (mm) | Outer Diameter (mm) | Inner Diameter (mm) (or as per customer requirements) | Length (mm) | Magnetic Permeability | Tensile Strength (MPa) | Hardness (HB) |
|---|---|---|---|---|---|---|
| Φ63 | 63 | 42 | 200-400 | ≤1.005 | ≥1035 | 300-400 |
| Φ73 | 73 | 50 | 200-400 | ≤1.005 | ≥1035 | 300-400 |
| Φ76 | 76 | 52 | 200-400 | ≤1.005 | ≥1035 | 300-400 |
| Φ89 | 89 | 60 | 200-400 | ≤1.005 | ≥1035 | 300-400 |
